Alimak-Hek product portfolio comprises construction hoists, industrial lifts, mast climbing work platforms, transport platforms and material hoists.

Alimak-Hek offers safe and efficient vertical access solutions to customers in the construction and other industries.

Alimak-Hek's product lines, Alimak, Heis-Tek, Champion, and Hek, are the world's leading names in construction hoists, industrial elevators, mast climbing work platforms, transport platforms and material hoists for both temporary and permanent installations.

Alimak Hek operates two Development and Manufacturing Centers placed in Sweden and in China with the Swedish Center being the global competence center for more complex vertical access solutions.

Alimak Hek Group AB, based in Stockholm, Sweden, is the headquarter for the world-wide Alimak Hek Group.

Alimak Hek is owned by Triton.

Triton is an independent European private equity investor focusing on investing in companies with leading market positions in attractive industry niches headquartered in the Nordic or German speaking countries. In addition to the investment in the Alimak Hek Group, Triton investments include global industrial and service companies, as well as companies offering services and products related to the construction industry.

ALIMAK SCANDO 450


The new ALIMAK SCANDO 450 is a total upgrade of the ALIMAK CH construction hoist range first launched in 1998. Over 600 units of the CH range have been delivered and the modernization program encompassing new technology further strengthens the light and medium range construction hoists.

ALIMAK SCANDO 450 offers greater efficiency and improved durability, with lower energy consumption and reduced cost of ownership. Accessibility is improved by the use of the new microprocessor based control system, ALC II, which can solve many site logistic problems. For example, the system reduces waiting times by storing all calls from the landings and sending the hoist that is logistically nearest to a landing to pick up passengers.

ALIMAK SCANDO 450 also gets a new frequency control unit (FC), with closed-loop, which gives very smooth starting and stopping with low starting current and less wear and tear.


Technical Data

Max payload capacity: 2,000 kg
Speed: 0 – 54 m/min
Max. lifting height: 150 m (Lifting height can be increased upon request).
Car width (internal): 1,4 m
Car length (internal): 2.0 – 3.2 m
Car height (internal): 2,13 m
Motor control: (DOL / FC)
No. of motors: 1-2
Safety device type: GF
Power supply range: 380 – 500 V, 50 or 60 Hz, 3 phase
Type of mast: 450, tubular steel with integrated rack
Length mast section: 1,508 m
Weight mast section with 1 rack: 68 kg
Rack module: 5

ALIMAK SCANDO 45/30


A new generation of construction hoists with outstanding performance.
The new ALIMAK SCANDO 45/30 construction hoist offers outstanding performance. The ALIMAK SCANDO 45/30 combines a medium-range hoist concept with a 450 mast to deliver on Alimak Hek's quality and safety promise. Designed and assembled at Alimak Hek’s production facility in Sweden, this hoist is a modern, flexible hoist solution capable of sharing a mast with the Alimak Hek medium range of transport platforms, material hoists and mast climbing work platforms.

Driven by a high-efficiency helical gearbox, the ALIMAK SCANDO 45/30 offers increased hoist power, smooth operation and energy efficiency, with the safety and usability expected of an Alimak hoist. A new design with quality, high-strength materials ensures low energy consumption, improved running efficiency and less wear for low cost of ownership.

The ALIMAK SCANDO 45/30 is designed to meet both passenger and materials transport needs. Available in a single or dual car configuration, this new hoist offers payload capacities of up to 2,000 kg per hoist car, with a cage size of 1.4 x 3.0 m. The hoist is available with either a Direct-on-Line (DOL) or Frequency Control (FC) motor system. These DOL or FC motors drive the unit via a high-efficiency helical gearbox designed and manufactured by Alimak Hek. Equipped with a modern microprocessor control system, the hoist offers stop-next-landing control for simple operation and ease of use.

Compatibility
The ALIMAK SCANDO 45/30 can use standard accessories available for the renowned Alimak Scando 450 modular system. The ALIMAK SCANDO 45/30 is also capable of sharing a mast with the Hek medium range of transport platforms, materials hoists and mast climbing work platforms, improving utilisation of machine accessories in a cost-effective way. Accessories like mast, ties and landing equipment can be configured (or delivered) with the hoist to suit most project demands for vertical access
– from low to high-rise buildings.

Safety
The ALIMAK SCANDO 45/30 is fitted with an Alimak safety device, overload sensor, and mechanical and electrical interlocking door system to ensure the highest safety standards. It undergoes a series of rigorous safety and quality tests before arrival to market.
Safety is at the heart of all Alimak Hek products and the ALIMAK SCANDO 45/30 is no exception. The overspeed safety device is the most vital component. All safety devices are tested in a specially constructed testing tower prior to delivery from the production line in Sweden.

• Economical: Low cost of ownership for construction and rental companies through durability, easy installation and dismantling.
• Smooth Operation: Frequency control provides smooth starting and stopping with a low starting current and less wear and tear.
• Flexible: The hoist can share a mast with the Hek medium range of transport platforms and mast climbing work platforms, improving utilisation of machine accessories in a cost-effective way.
• Proven Technology: An easy-to-use control system, based on proven Alimak Hek technology, allows for simple operation and ease of use.

Technical Data

Motor control: DOL or FC
Max payload capacity: 2,000 kg *
Speed (DOL): 38 m/min
Speed (FC): 0–42 m/min.
Max. lifting height: 150/200 m.
Cage width (internal): 1,4 m
Cage length (internal): 3.0 m
Cage height (internal): 2,13 m
Load space: Up to 9 m3 (18 m3 with dual cars)
No. of motors (DOL) 2x7.5 kW
No. of motors (FC) 2x11 kW
Safety device type: ALIMAK GF
Power supply range: 400 V, 50 or 60 Hz, 3 phase
Fuse ratings 63 / 80 A **
Type of mast: 450, tubular steel with integrated rack
Length mast section: 1,508 m
Weight mast section with 1 rack: 68 kg
Rack module: 5

ALIMAK SCANDO 650


The all-new fully modular Scando 650 hoist offers improved performance, durability and lifting capacity, with lower energy consumption and reduced cost of ownership.

Alimak has taken construction hoist technology to unprecedented levels with the introduction of the all-new Scando 650; a modular system that can adapt to different applications using relatively few modules and components.

Available in single or twin car configuration, the Scando 650 offers payloads of 1,500 to 3,200 kg/car and has a standard maximum lifting height of 250 m, which can be increased on request.

The free-standing mast height is 32 m when equipped with an optional pipe support.

Two or three FC frequency control or two DOL motors drive the system through a high efficiency gearbox. The Scando 650 operates at speeds up to 65 m/min and provides more hoistpower, while using as much as 40% less power than previous Scando models. Higher speed versions will be introduced later in the year.


Technical Data

s
Max payload capacity: 1,500 – 3,200 kg
Speed: 38 – 65 m/min
Max. lifting height: 250 m (Lifting height can be increased upon request).
Car width (internal): 1,5 m
Car length (internal): 3,2 – 3,9 m ve 3,9 – 4,6 m
Car height (internal):2,3 m
Motor control: (DOL / FC)
No. of motors: 2-3
Safety device type: GFD-II
Power supply range: 380 – 500 V, 50 or 60 Hz, 3 phase
Type of mast: A–50, tubular steel with integrated rack
Length mast section: 1,508 m
Weight mast section with 1 rack: 118 kg
Rack module: 5

AlIMAK SCANDO 650 FC-S


The new high speed construction hoist for greater productivity

Available in single or dual car configuration, the ALIMAK SCANDO 650 FC-S offers payloads of 2,400 to 3,200 kg/car and has a maximum lifting height of 250 m as standard. Three Frequency Control (FC) motors drive the system through a high efficiency gearbox. The 650 FC-S operates at speeds up to 100 m/minute.

Speed and reliability are increasingly important features in large and complex building projects. Now true high-speed is a part of the 650 family.


Technical Data

Max payload capacity: 2,400 – 3,200 kg
Speed: 0 – 100 m/min
Max. lifting height: 250 m (Lifting height can be increased upon request).
Car width (internal): 1,5 m
Car length (internal): 3,2 – 3,9 m ve 3,9 – 4,6 m
Car height (internal): 2,3 m
Motor control: (FC)
No. of motors: 3
Safety device type: GFD-II
Power supply range: 400 – 500 V, 50 or 60 Hz, 3 phase
Type of mast: A–50, tubular steel with integrated rack
Length mast section: 1,508 m
Weight mast section with 1 rack: 118 kg
Rack module: 5

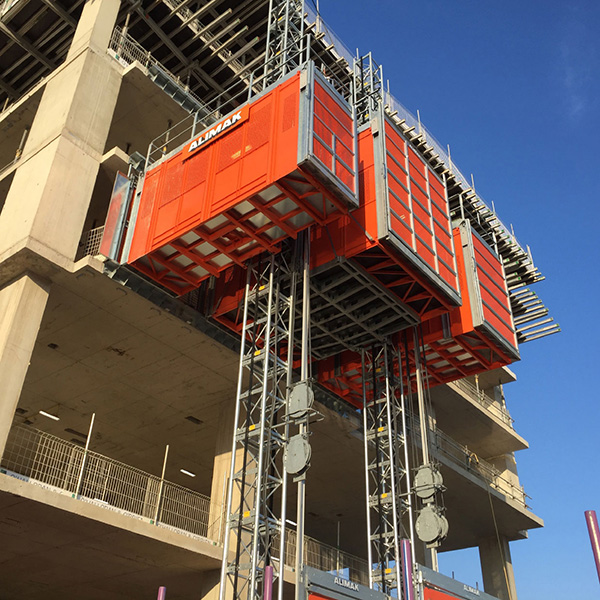

ALIMAK SCANDO 650 FC-XL


Extra large construction hoists for passengers and materials

With internal car lengths up to 5 m, a width of 2 m and a height of 2.8 m the new Alimak Scando 650 FC-XL surpasses all existing standard construction hoists operating on a single mast.

The Alimak Scando 650 FC-XL eases transportation of long facade elements or other bulky materials in the hoist car. By using a forklift truck or a board transit bench the loading and unloading of bulky materials can be done easy and ergonomically. Speeds up to 54 metres per minute and capacities up to 2,500 kg can be achieved. For higher speed (up to 100 metres /minute) or capacity, the data will be specified as per actual project demand.

Adding extra large hoist cars to the 650 success
The 650 concept has been a huge success, combining productivity, reliability and a cost saving modular system with improved ergonomics and up to 40 percent decreased power consumption. With the introduction of the 650 FC-XL, productivity will be increased further and thus save time and money.

Compatible with all 650 modules

In addition, the 650 FC-XL has no counter weight, and can use the whole line of modules and additions available for the Alimak Scando 650 family. It can be configured (or delivered) with standard modules to suit all known project demands for vertical access from low to extreme high-rise buildings.


Technical Data

Max payload capacity: 2,400 – 3,000 kg
Speed: 0 – 54 m/min
Max. lifting height: 250/400 m
Car width (internal): 2,0 m
Car length (internal): 3,2 – 5,0 m
Car height (internal): 2,8 m
Motor control: (FC)
No. of motors: 3
Safety device type: GFD-II
Power supply range: 400 – 500 V, 50 or 60 Hz, 3 phase
Type of mast: 650, tubular steel with integrated rack
Length mast section: 1,508 m
Weight mast section with 1 rack: 118 kg
Rack module: 5

ALIMAK SCANDO 65/32


A new generation of construction hoists with outstanding performance and competitive price.

The new ALIMAK SCANDO 65/32 is a reliable and efficient construction hoist, offering simplicity of operation, ease of installation at a competitive price. The ALIMAK SCANDO 65/32 is designed and assembled at Alimak Hek’s production line in Sweden, with the quality and safety that have always been a hallmark of our products. The hoist is compliant with European standards and regulations.

Driven by a high-efficiency helical gearbox, the ALIMAK SCANDO 65/32 offers increased hoistpower, smooth operation and energy efficiency, with the safety and usability expected of an Alimak hoist. A new design with quality, high-strength materials ensures low energy consumption, improved running efficiency and less wear for low cost of ownership.
The ALIMAK SCANDO 65/32 is designed for passenger and materials transport. Available in single or dual car configuration, the new hoist offers payloads of up to 2,400 kg per cage, and cage size 1.5 x 3.2 m. The hoist is available with either DOL (Direct-on-line) or FC (Frequency Control) drive via a highly efficient helical gearbox system. The gearbox is self-manufactured. A modern microprocessor hoist control system with stopnext- landing control allows for simple operation and ease of use.

Compatibility
The ALIMAK SCANDO 65/32 can use standard accessories available for the renowned Alimak Scando 650 modular system, improving utilisation of machine accessories in a cost-effective way. Accessories like mast, ties and landing equipment can be configured (or delivered) with the hoist to suit most project demands for vertical access — from low to high-rise buildings.

Safety
The ALIMAK SCANDO 65/32 is fitted with an Alimak safety device, overload sensor, and mechanical and electrical interlocking door system to ensure the highest safety standards. It undergoes a series of rigorous safety and quality tests before arrival to market.
Safety is at the heart of all Alimak Hek products and the ALIMAK SCANDO 65/32 is no exception. The overspeed safety device is the most vital component. All safety devices are self-manufactured and tested in a specially constructed testing tower prior to delivery from the production line in Sweden.

• Economical: Low cost of ownership for construction and rental companies through durability, easy installation and dismantling.
• Smooth Operation: Frequency control provides smooth starting and stopping with a low starting current and less wear and tear.
• Robust Design: A robust cage design ensure maximum usability and extended equipment life.
• Proven Technology: An easy-to-use control system, based on proven Alimak Hek technology, allows for simple operation and ease of use.

Technical Data

Motor control: DOL or FC
Max payload capacity: 2,400 kg*
Speed (DOL): 38 m/min
Speed (FC): 0–42 m/min.
Max. lifting height: 200 m*
Cage width (internal): 1,5 m
Cage length (internal): 3.2 m
Cage height (internal): 2,3 m
Load space: Up to 11 m3 (22 m3 with dual cars)
No. of motors: 2x11kW
Safety device type: ALIMAK GFD-II
Power supply range: 400 V, 50 or 60 Hz, 3 phase
Fuse ratings: 63 / 80 A **
Type of mast: 650, tubular steel with integrated rack
Length mast section: 1,508 m
Weight mast section with 1 rack: 118 kg
Rack module: 5

ALIMAK SC 45/30


The ALIMAK SC 45/30 is a reliable and efficient construction hoist, offering simplicity of operation, ease of installation and intelligent design with a low total cost of ownership. Engineered in Sweden and manufactured in China, the ALIMAK SC 45/30 undergoes a series of rigorous safety and quality tests before arrival to market. Driven by a high-efficiency helical gearbox, the ALIMAK SC 45/30 offers increased hoistpower, smooth operation and energy efficiency, with the safety and usability expected of an Alimak hoist. A new design with quality, high-strength materials ensures low energy consumption, improved running efficiency and less wear for low cost of ownership.

The ALIMAK SC 45/30 is designed for passenger and materials transport. The ALIMAK SC 45/30 offers, efficiency, safety, reduced energy consumption and low operating costs, making it the ideal hoist solution for construction and rental companies. A modern microprocessor hoist control system with stop-next-landing control allows for simple operation and ease of use. The ALIMAK SC 45/30 is capable of sharing a mast with the Hek medium range of transport platforms, materials hoists and mast climbing work platforms, improving utilisation of machine accessories and increasing transport capacity in a cost-effective way.

Rack and pinion
Alimak Hek is the global leader in rack and pinion drive technology, with more than 50 years' experience in the innovation of high-quality rack and pinion products designed to meet client requirements. The ALIMAK SC 45/30 is engineered and manufactured to Alimak Hek's exacting standards, delivering reliability, energy efficiency and durability in even the toughest working conditions.

Flexibility of design
The ALIMAK SC 45/30 offers flexibility of design, with three available door options: a vertical door, bi-folding door or vertical door with load ramp. The load ramp allows for quick and easy loading of materials and requires no special landing bridges.

Energy-efficient drive unit
A high-efficiency helical gearbox provides lower power consumption and reduced operational costs.

Variable frequency control
Variable Frequency Control (FC) provides smooth starting and stopping, with a low starting current, less wear and tear and improved landing accuracy. A range of voltage options are available to suit any client power requirement.

Extended equipment life
The ALIMAK SC 45/30 uses lighter and stronger galvanised steel mast sections and tie-ins. A centrally located rack balances the force between mast pipes and guide rollers, ensuring even equipment wear and extending operational life.

Reduced power consumption
New design and materials provide stronger, lighter and more compact cage design for reduced power consumption. A fixed cage frame and welded cage walls lengthen machine service life, while reducing noise and vibrations.

Easy installation and dismantle
No special tools are required, and four lifting eyes are located on the car roof and two on the drive unit for easy installation and dismantle. This ensures a cost-effective and user-friendly hoist solution.

Technical Data

Motor control: (DOL / FC)
Max payload capacity: 2,000 kg*
Speed (DOL): 36 m/min.
Speed (FC): 0–60 m/min.
Max. lifting height: 150/180 m (Increased lifting height on request.)
Car width (internal): 1,4 m
Car length (internal): 3.0 m
Car height (internal): 2,13 m
No. of motors: 2
Safety device type: SAJ30-1.2 or ALIMAK GF
Power supply range: 380-500 V, 50 or 60 Hz, 3 phase
Type of mast: 450, Tubular steel with integrated rack
Length mast section: 1,508 m
Rack module: 5

ALIMAK SC 45


Technical Data

Payload capacity: Up to 2,000 kg
Speed: 0 – 54 m/min
Max. lifting height: 150 m (Increased lifting height on request.)
Car width (internal): 1,4 m
Car length (internal): 2.0 – 3.2 m
Car height (internal): 2,13 m
Motor control: (DOL / FC)
No. of motors: 1-2
Safety device type: GF
Power supply range: 380 – 500 V, 50 or 60 Hz, 3 phase
Type of mast: 450, Tubular steel with integrated rack
Length mast section: 1,508 m
Weight mast section with 1 rack: 68 kg
Rack module: 5

ALIMAK SC 65/32


A new generation of construction hoists with outstanding performance and competitive price.

The new ALIMAK SCANDO 65/32 is a reliable and efficient construction hoist, offering simplicity of operation, ease of installation at a competitive price. The ALIMAK SCANDO 65/32 is designed and assembled at Alimak Hek’s production line in Sweden, with the quality and safety that have always been a hallmark of our products. The hoist is compliant with European standards and regulations.

Driven by a high-efficiency helical gearbox, the ALIMAK SCANDO 65/32 offers increased hoistpower, smooth operation and energy efficiency, with the safety and usability expected of an Alimak hoist. A new design with quality, high-strength materials ensures low energy consumption, improved running efficiency and less wear for low cost of ownership.
The ALIMAK SCANDO 65/32 is designed for passenger and materials transport. Available in single or dual car configuration, the new hoist offers payloads of up to 2,400 kg per cage, and cage size 1.5 x 3.2 m. The hoist is available with either DOL (Direct-on-line) or FC (Frequency Control) drive via a highly efficient helical gearbox system. The gearbox is self-manufactured. A modern microprocessor hoist control system with stopnext- landing control allows for simple operation and ease of use.

Compatibility
The ALIMAK SCANDO 65/32 can use standard accessories available for the renowned Alimak Scando 650 modular system, improving utilisation of machine accessories in a cost-effective way. Accessories like mast, ties and landing equipment can be configured (or delivered) with the hoist to suit most project demands for vertical access — from low to high-rise buildings.

Safety
The ALIMAK SCANDO 65/32 is fitted with an Alimak safety device, overload sensor, and mechanical and electrical interlocking door system to ensure the highest safety standards. It undergoes a series of rigorous safety and quality tests before arrival to market.
Safety is at the heart of all Alimak Hek products and the ALIMAK SCANDO 65/32 is no exception. The overspeed safety device is the most vital component. All safety devices are self-manufactured and tested in a specially constructed testing tower prior to delivery from the production line in Sweden.

• Economical: Low cost of ownership for construction and rental companies through durability, easy installation and dismantling.
• Smooth Operation: Frequency control provides smooth starting and stopping with a low starting current and less wear and tear.
• Robust Design: A robust cage design ensure maximum usability and extended equipment life.
• Proven Technology: An easy-to-use control system, based on proven Alimak Hek technology, allows for simple operation and ease of use.

Technical Data

Motor control: (DOL / FC / FC-S)
Max payload capacity: 2,000 kg*
Speed (DOL): 36/60/90 m/min
Speed (FC): 0–42 m/min.
Max. lifting height: 200 m*
Car width (internal): 1,5 m
Car length (internal): 3,2 m
Car height (internal): 2,3 m
Load space: Up to 11 m3 (22 m3 with dual cars)
No. of motors: 2-3
Safety device type: SAJ40-1.2A, SAJ40-1.4 ya da SAJ50-2.0
Power supply range: 380-500 V, 50 or 60 Hz, 3 phase
Fuse ratings: 63 / 80 A **
Type of mast: 650, tubular steel with integrated rack
Length mast section: 1,508 m
Rack module: 8
*Max. payload capacity and lifting height with cable trolley.
** 63 A with cable basket, 80 A with cable trolley.

ALIMAK SC 65


The all-new fully modular ALIMAK SC 65 is based on the proven design of the ALIMAK SCANDO 650, which has been very successful in the market.

Alimak has taken construction hoist technology to unprecedented levels with the introduction of the all-new Alimak SC 65; a modular system that can adapt to different applications using relatively few modules and components.

Available in single or twin car configuration, the Alimak SC 65 offers payloads of 1,500 to 3,200 kg/car and has a standard maximum lifting height of 250 m, which can be increased on request.
The free-standing mast height is 22.5 m when equipped with an optional pipe support.

Two or three FC frequency control or two DOL motors drive the system through a high efficiency gearbox. The Alimak SC 65 operates at speeds up to 65 m/min and provides more hoistpower, while using as much as 40% less power than previous models.

Technical Data

Payload capacity: 1,500-3,200 kg*
Speed: 38/65 m/min
Max. lifting height: 250 m (Increased lifting height on request.)
Car width (internal): 1,5 m
Car length (internal): 3.2-3.9 ve 3.9-4.6 m
Car height (internal): 2,3 m
Motor control: (DOL / FC)
No. of motors: 2-3
Safety device type: GFD-II
Power supply range: 380-500 V, 50 or 60 Hz, 3 phase
Type of mast: A-50, Tubular steel with integrated rack
Length mast section: 1,508 m
Weight mast section with 1 rack: 118 kg
Rack module: 5

ALIMAK TCL


Alimak Hek is launching a new tower crane lift, the ALIMAK TCL. Designed for installation on all existing tower crane brands and systems, the ALIMAK TCL maximizes crane utilization by providing reliable and smooth crane cab access. The ALIMAK TCL offers fast external installation, easy retrofitting with no mast modifications, and comfortable and reliable access for crane operators, technicians and maintenance personnel.

Fastest external installation available
The ALIMAK TCL boasts an innovative new design that offers the fastest external installation currently available on the market. This design allows for a greater tie distance, which can be adapted to the specific tower crane mast platform for a tailored installation. As a result, fewer ties are required, reducing the total lift assembly time and minimizing potential crane downtime.

Adjustable for external installation on all tower cranes, the ALIMAK TCL utilizes a compact mast and rack made of durable galvanized steel. This flexible mast and rack system enables easy assembly with centering notches and captive bolts. Flexible and modular tie-ins are capable of fixing the lift car to the majority of existing crane mast systems.

Maximizes crane uptime
The ALIMAK TCL is designed with operator safety, comfort and usability in mind. Capable of transporting a maximum of two passengers (200 kg) at a time, the lift provides a fast, ergonomic and all-weather alternative to traditional crane ladders. With lifting speeds of 24 m/minute, the ALIMAK TCL minimizes travel time for crane operators and service personnel, thereby maximizing crane working time.

Safety at height
With no modifications to crane masts required, the ALIMAK TCL is simple to retrofit to existing tower crane systems and is fully compliant with ‘EN 81-43: Lifts for Cranes’ safety requirements. The ALIMAK TCL offers mechanical, electrical interlocked doors. A reversible cab enables these doors to be located on the left or right, to suit a variety of tower crane systems and site needs.

Characterizes
• Strong, reliable and robust design based on many years of experience
• A compact mast and rack made of durable galvanized steel
• Fastest external installation available. Substantial tie distances saves time during installation
• Effective space utilization within the cage
• Adaptable to all existing crane mast systems
• Tie distance is adapted to tower crane mast platform for ergonomic installation
• Reversible lift cage allows the door to be located on the right or left to suit different tower crane mast systems
Variety of accessories available
• The easy way up to tower crane cabs: It is adaptable to any tower crane mast, allows adaptable tie distance and time-saving travel to the crane cab.
• Time saving: Our long tie distance enables us to have the shortest installation time.
• Safety: In all our activities we operate according to the strictest requirements in terms of safety and quality.
• Robust design: A robust lift designed especially for the tower crane application, slim cage design gives effective space utilization.
• Proven technology: An ease-to-use control system, based on proven Alimak Hek technology, allows for simple operation and ease of use.

Technical Data

Max payload capacity: 200 kg or 2 persons
Speed: 24 m/min
Max. lifting height: 100 m* .
Cage width (internal): 0.63 m
Cage length (internal): 1.2 m
Cage height (internal): 2,0 m
Door opening: 0.59 m x 2.0 m
Motor control: DOL (Direct-on-line)
No. of motors: 1 x 3.0 kW
Power supply range: 380-420 V, 50 or 60 Hz
Type of mast: Tube mast
Length mast section: 175 mm x 175 mm x 1,508 m
Rack module: 6

Remote Monitoring Systems

A3 is Alimak Hek’s new online system for remote control of vertical access equipment, collecting operational information and data, such as time and number of starts and stops, hours in operation, etc. Depending on the control system used it can also serve as a fault tracing device, tracing faults for quick and easy action in order to keep down-time to a minimum. Information is fed via the Internet, e-mail or on-line, or via cell phones to the supervisor.
